Syphon Effect?

[mdex]

I have made my mash tun but have a huge amount of dead space about 3 litres!!

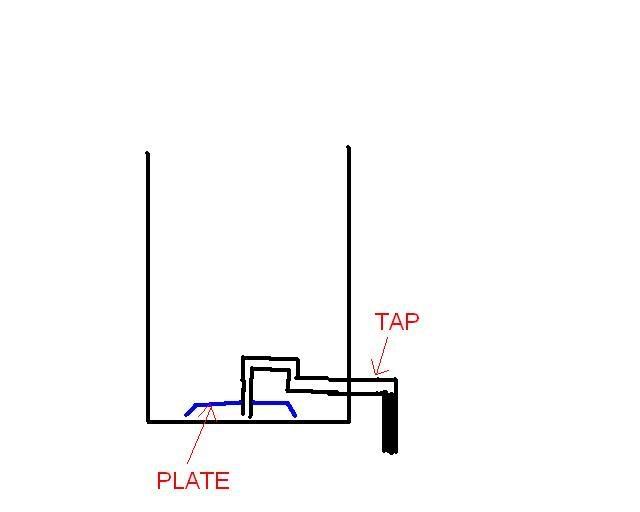

My tun is a false bottom setup like the picture above but without the filled black piece after the tap.

Would this create a syphon and pull more wort through?

Mat

[grumpysod]

Yes, at the moment your tun will only drain as low as the bottom of the tap.

[mdex]

there's no need for the up and over profile, you're creating a more tourtuous route for the wort and the siphon effect will have to work against this, it could be a potential problem and not work as effectively as it could.

I have to have the up and over bit, the picture is probably not exactly how my tun is.

I'll give it a go with the extra on the end of the tap and see how it goes.

[tangoman]

The end of the outlet needs to be lower than the pick-up tube,ideally the end of the black piece you have drawn.

[hotmog]

The diameter of your outlet pipe could also be an issue. I found I needed to constrict my 15mm copper pipe to around 10mm to achieve the maximum effect - see this thread: viewtopic.php?f=2&t=22121. I have exactly the same set-up as you're using, and the dead space in mine is just 250ml.

[mdex]

As expected I added the extra bit of pipe to bring the output below the bottom of the tun and it syphons perfectly!

Only a cupfull of liquid left

Cheers

[WishboneBrewery]

Sounds good too...
Maybe a bit of 10mm pipe of a 15-10mm reducer might help my dead space. (glad I did a board search)
