Mild in June

Post by edit1now » Thu Jul 24, 2008 4:47 pm

Sorry this is very late but I had to do my post about the pasta strainer first, and I was busy at work, then I was on holiday...

I thought I'd have another go at a mild, because the last one came out incredibly hoppy. First of all I thought I had a stuck fermentation, then it hadn't primed after a fortnight in bottle, and the LAB-ers said it was sweet, then after a few more weeks it has primed OK, and is quite drinkable but as a hoppy dark-ish ale. Definitely not a mild.

Mild 22/6/2008

3kg Mild Ale malt
2kg pale malt
500g crystal malt

Using HERMS system -

Mash schedule:

½ hour @ 50 ̊C
½ hour @ 60 ̊C
½ hour @ 67 ̊C

heated to about 80 ̊C for sugar solubility before sparging with 78 ̊C water down to 2̊ Brix

NB mash liquor and sparge liquor each had 0.4g metabisulphite added (= 1 Campden tablet) to kill chloramine.

Boiled 1 hour with 15g 2007 home-grown Hallertau hops and lidful of Irish Moss

Boiled 15 minutes with 15g 2007 home-grown Hallertau hops

Force-cooled to 23.5 ̊C

Pitched SO-4 starter made with wort

OG 1066 @ 23.5 ̊C = 1067.6 @ 15.5 ̊C


28/6/2008

Racked to fermenter using peristaltic pump. Racking gravity 1020 @ 22.8 ̊C = 1021.4 @ 15.5 ̊C. so 6% ABV at this point using HMRC fudge factor of 1.3.

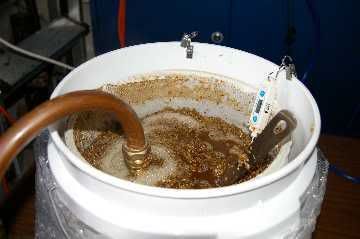

Doughing-in (you can see I'm now using the giant pasta strainer and grain bag, after the problems I had with the Vienna Ale):

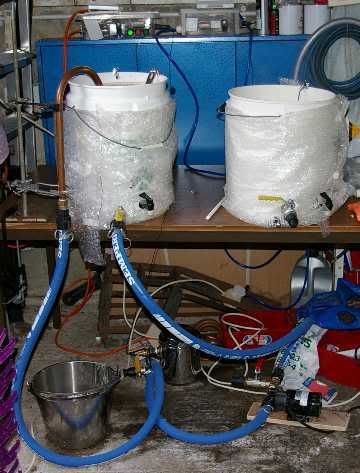

Mashing with HERMS:
I turned down the flow on the heat exchanger outlet valve, so the wort coming out of the grains could keep up with the pump taking it away. Now I could walk away, relying on the timer (mobile phone - you can't nudge the buttons if you lock the keypad) on my belt. I'm pretty happy with the new pasta strainer, and I can lift out the whole thing, grain and all, when the mash tun becomes the boiler.

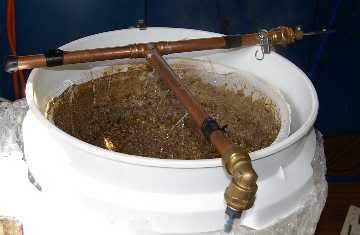

Sparging:

Quite a lot of wort to have to boil (I topped-up the boiler in stages):

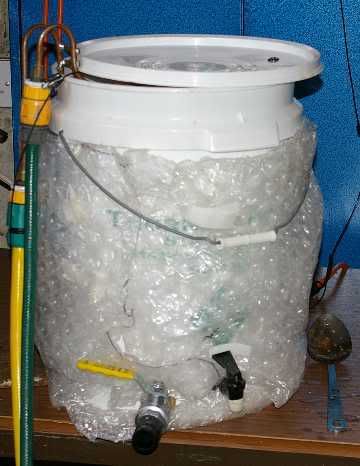

Cooling:

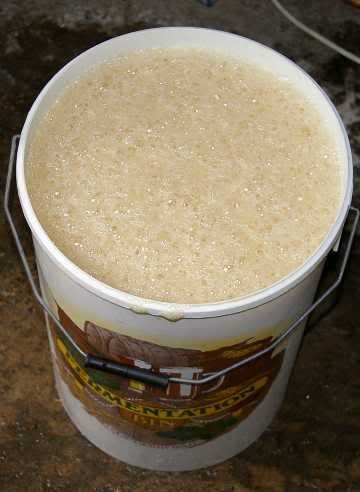

Aerated and pitched:

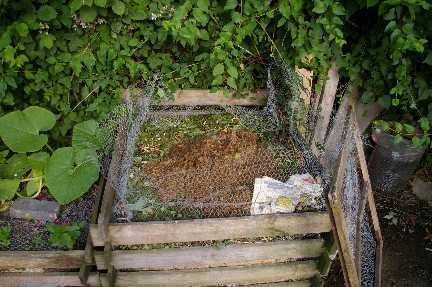

Spent grains and hops on the compost heap:

Note the chicken wire for keeping-out the larger rodents.

richard_senior

Post by richard_senior » Thu Jul 24, 2008 4:49 pm

Love the test tube stands :)

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Thu Jul 24, 2008 5:04 pm

Also useful for still-life photography, soldering, welding, things in the darkroom...

richard_senior

Post by richard_senior » Thu Jul 24, 2008 5:27 pm

edit1now wrote:Also useful for still-life photography, soldering, welding, things in the darkroom...
Yup.. I covet them greatly.

maxashton

Post by maxashton » Thu Jul 24, 2008 5:39 pm

Looks bloody tasty. Let us know how it goes!

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Thu Jul 24, 2008 8:23 pm

Richard - I "acquired" mine but you could get a set with stand, boss and clamp for £27 + P&P from Rapid, or slightly more from Camlab. Maybe some kind engineering person on JBK would bodge you a stand out of leftovers? Then all you'd need would be the boss and clamp.

richard_senior

Post by richard_senior » Fri Jul 25, 2008 10:10 am

edit1now wrote:Richard - I "acquired" mine but you could get a set with stand, boss and clamp for £27 + P&P from Rapid, or slightly more from Camlab. Maybe some kind engineering person on JBK would bodge you a stand out of leftovers? Then all you'd need would be the boss and clamp.
I recently acquired a mig welder... so I think I might be able to make the stand myself actually, does the clamp fit any sized upright or does it fit a specific diameter of rod?

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Fri Jul 25, 2008 11:28 am

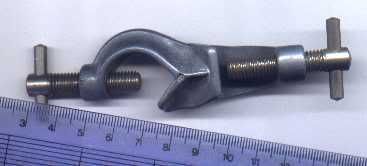

Here is a picture (a scan actually) of one of my retort stand bosses (the right-angled double clamp for attaching the flask clamp to the stand):

I think it should grab a rod anything between 1/4" to 3/4" diameter, so some piece of scrap stock you have already should be OK (or head off to Metal Supermarkets or a DIY superstore) . If you're using a tube it needs to be quite thick-walled not to get denting-in by clamping (sorry...eggs, grandmother...).

NB if you want a cheap heavy base, IKEA have a cast-iron base for their Anglepoise-type lamps (Global or Tertial range?) which used to be about £7 each. I can't find the bases on their website, so what's new? You might need to machine the end of your rod to fit their hole, or vice versa.

richard_senior

Post by richard_senior » Fri Jul 25, 2008 11:45 am

Ta... I've got a bit of half inch stainless rod somewhere.. I'll put it on my list of things to do :)
I've just finished making a workbench out of 4x2" box section. it's about 1.7 by 0.7 Metres, and I've bought 450 quids worth (for 40 quid) of bench vice complete with pipe bending attachments. Now I need a suitable bit of sheet steel for the top of it, but I'm looking down the barrel of 130 quid for a bit of 1/4" plate.
Once that's done.. Its full on project shiny.. HERMS/RIMS and everything.

User avatar
spearmint-wino
CBA prizewinner 2007
Posts: 1039
Joined: Sat Mar 10, 2007 9:08 am
Location: Nunhead, Sarf Lahndun

Post by spearmint-wino » Fri Jul 25, 2008 2:57 pm

Ready for September LAB, e1n? 8)

drinking: ~ | conditioning: ~ | primary: ~ | Looks like I need to get brewing then...
Visit London Amateur Brewers online

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Fri Jul 25, 2008 3:28 pm

LAB meeting as mentioned here, but I can't remember what the homework was supposed to be. I just bought a ticket for Thursday, allegedly cheaper online than at the door.

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Fri Jul 25, 2008 3:39 pm

Workbench top: have you looked at this guy on EBay, or Metal Supermarkets?

User avatar
edit1now
Under the Table
Posts: 1408
Joined: Wed Nov 28, 2007 5:09 pm
Location: North-west London

Post by edit1now » Fri Jul 25, 2008 3:41 pm

Oops - will the mild ale be ready by the September LAB meeting? Probably. I'll bottle it at the end of this month, then it should have a good month to condition.

richard_senior

Post by richard_senior » Fri Jul 25, 2008 4:41 pm

edit1now wrote:Workbench top: have you looked at this guy on EBay, or Metal Supermarkets?
I think the problem is that buying 'new' sheet steel is expensive.
I'm hoping to stumble accross an abandoned piece of checker plate or something :)
