Nobby'snut'sbrewing blichmann beer gun build

[NobbyIPA]

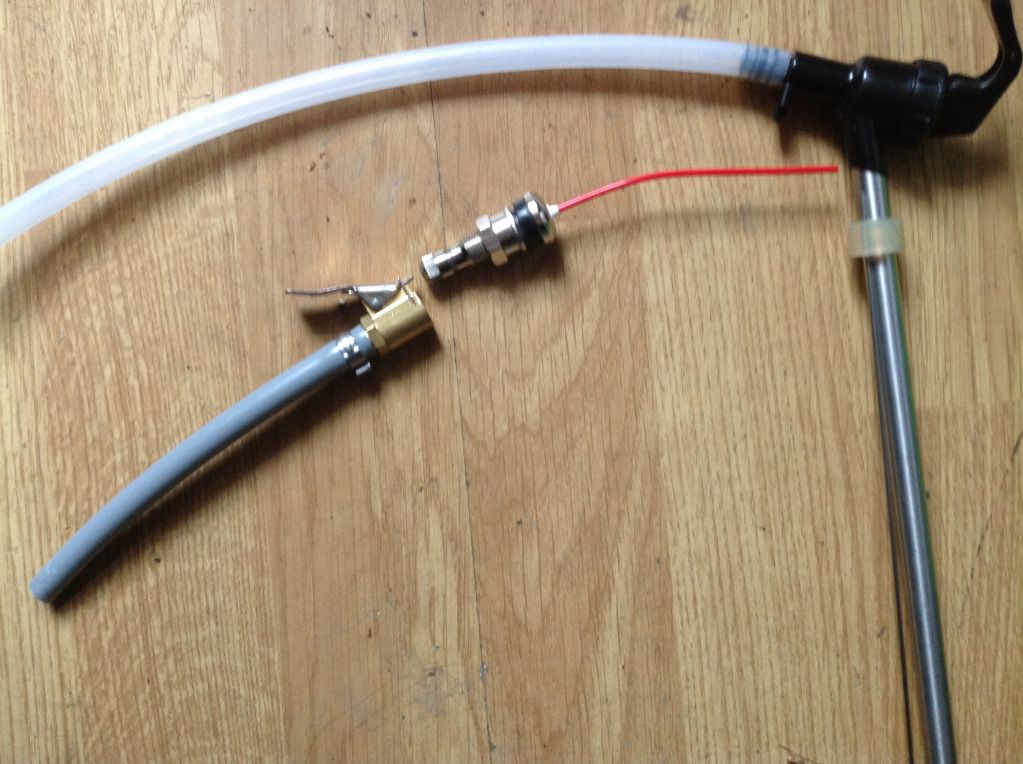

well looks simple to make here it is so far

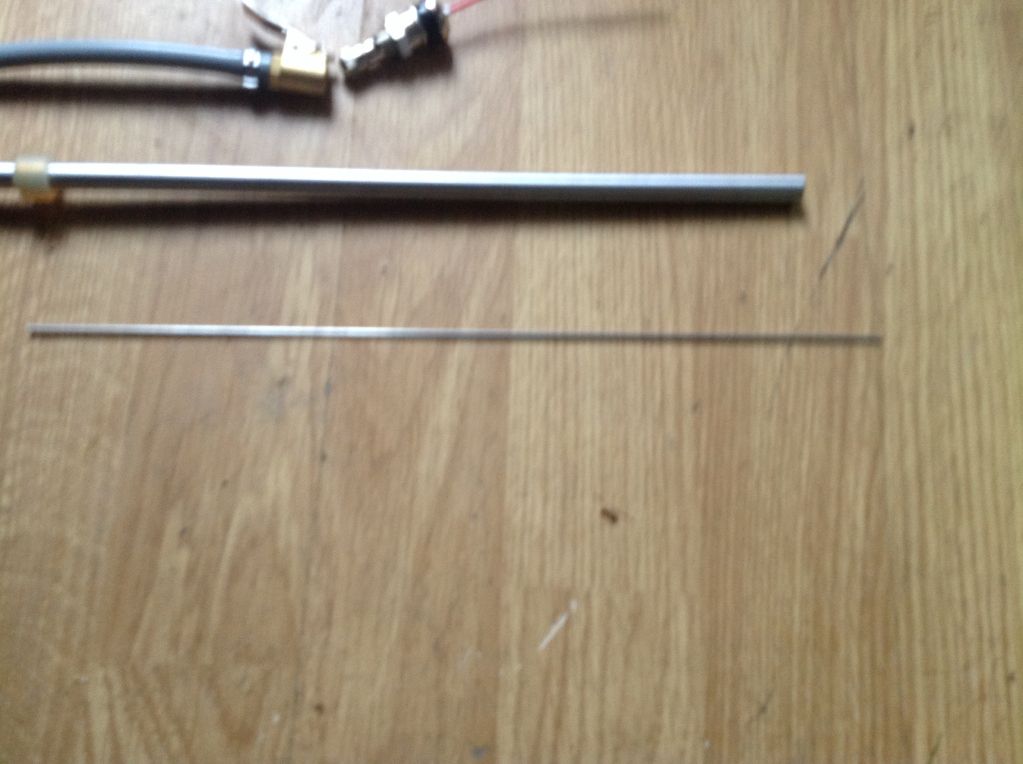

so got hold of some
30cm length of each of surgical stainless steel
17G 1.10mm I/D 1.47mm O/D
and 1 pc 8.10mm I/D 9.53mm O/D
from a hypodermic needle come lippo suction manufacturers








now i am looking to get a nice push button type trigger for the gas

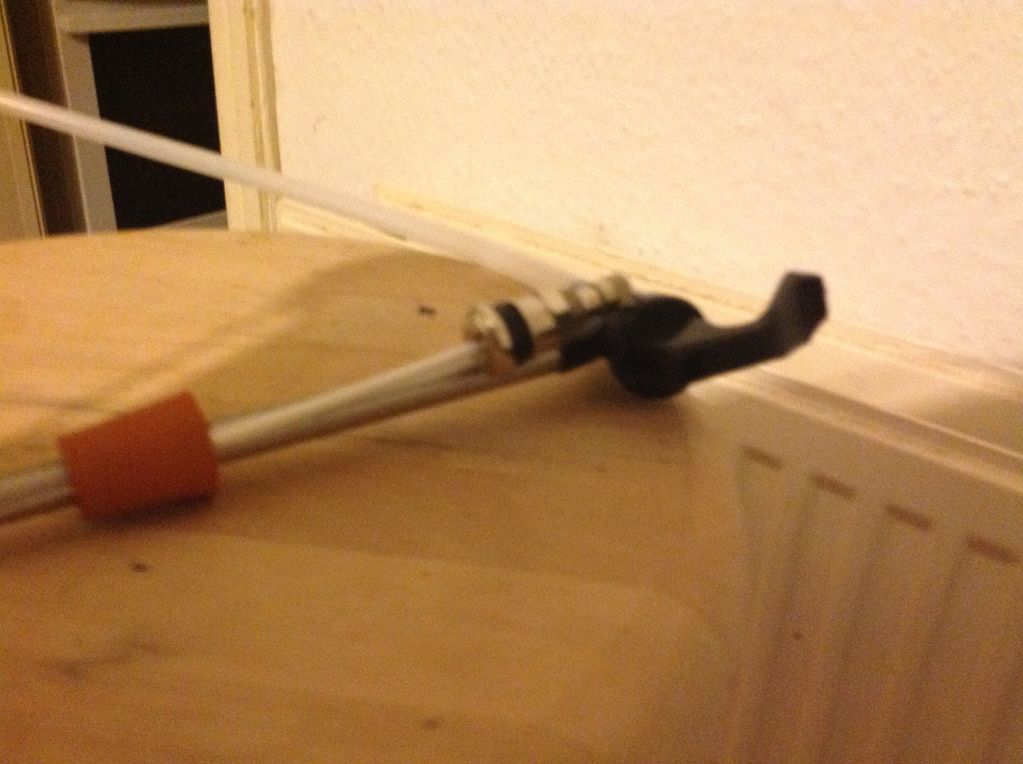

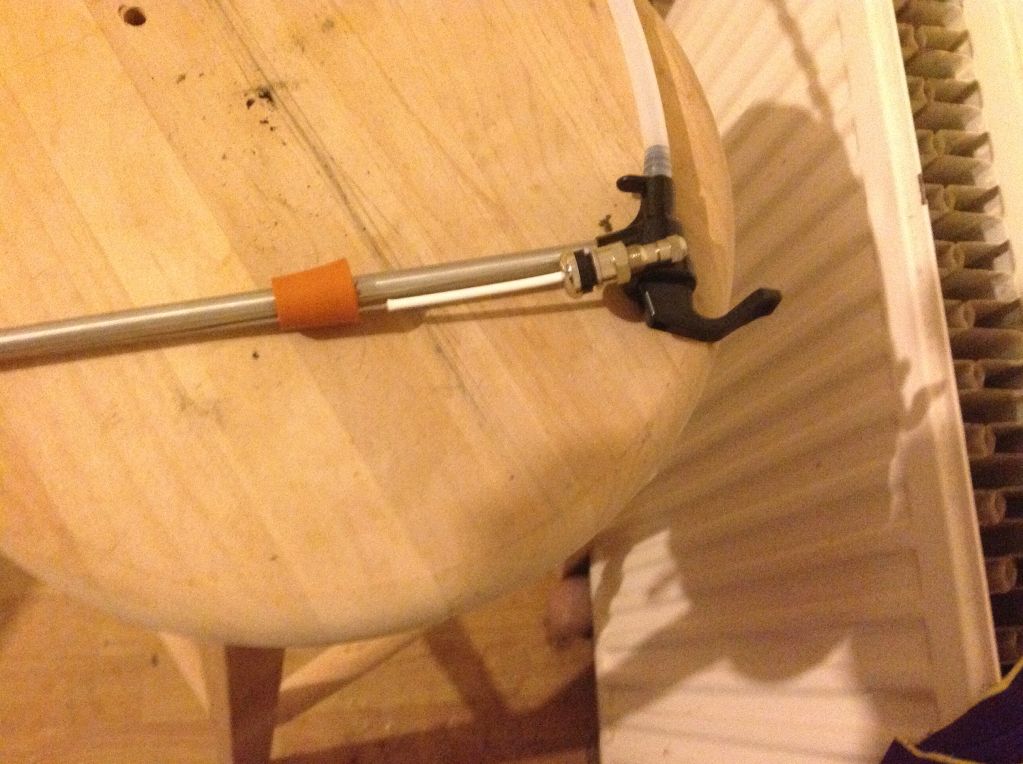

as you can see i can in theory use it as is with the ss tyre valve set up

[NobbyIPA]

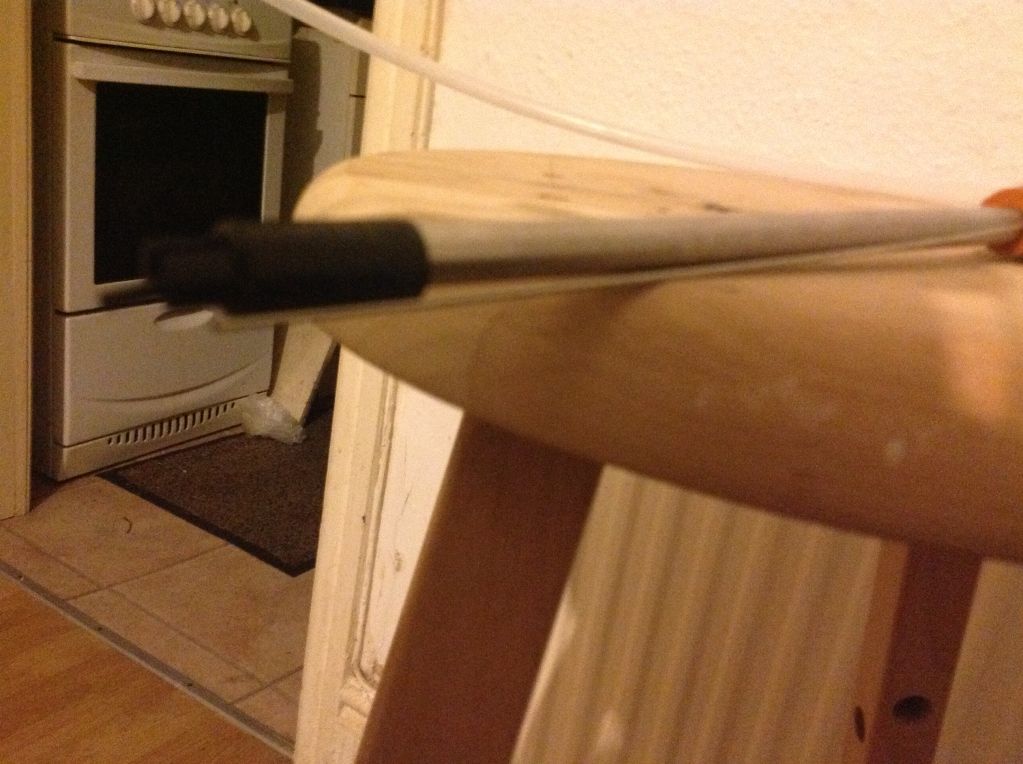

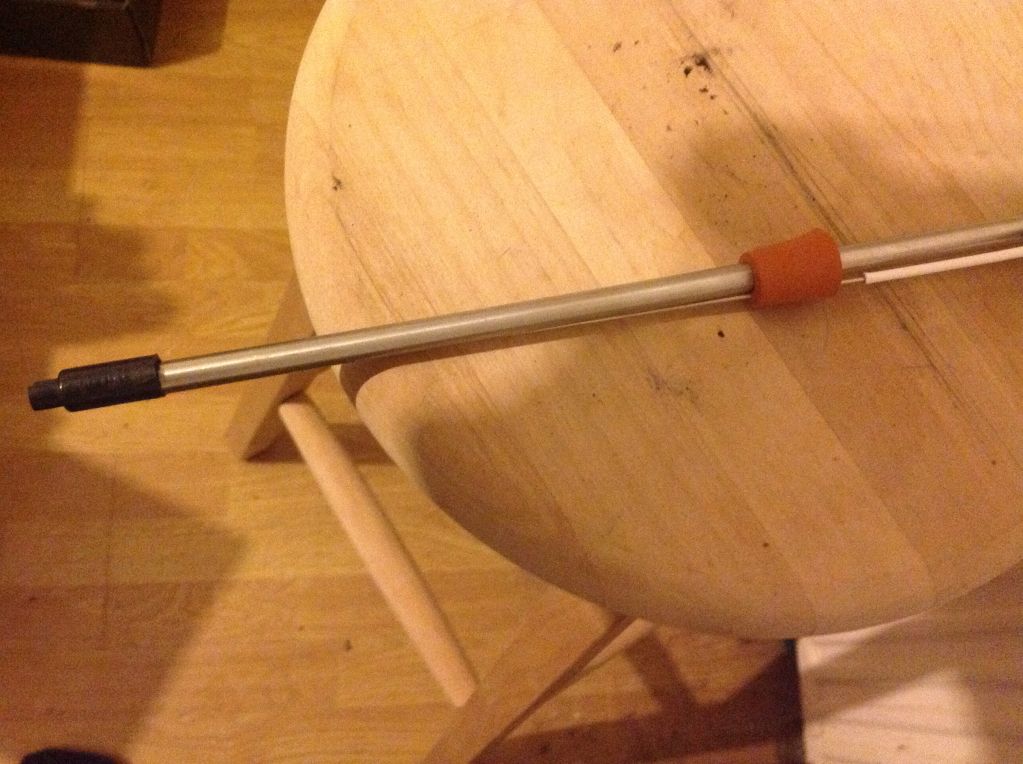

just been told the blichmann beer feed is at the base of the tube

so getting it to dispense from the bottom solved i think????

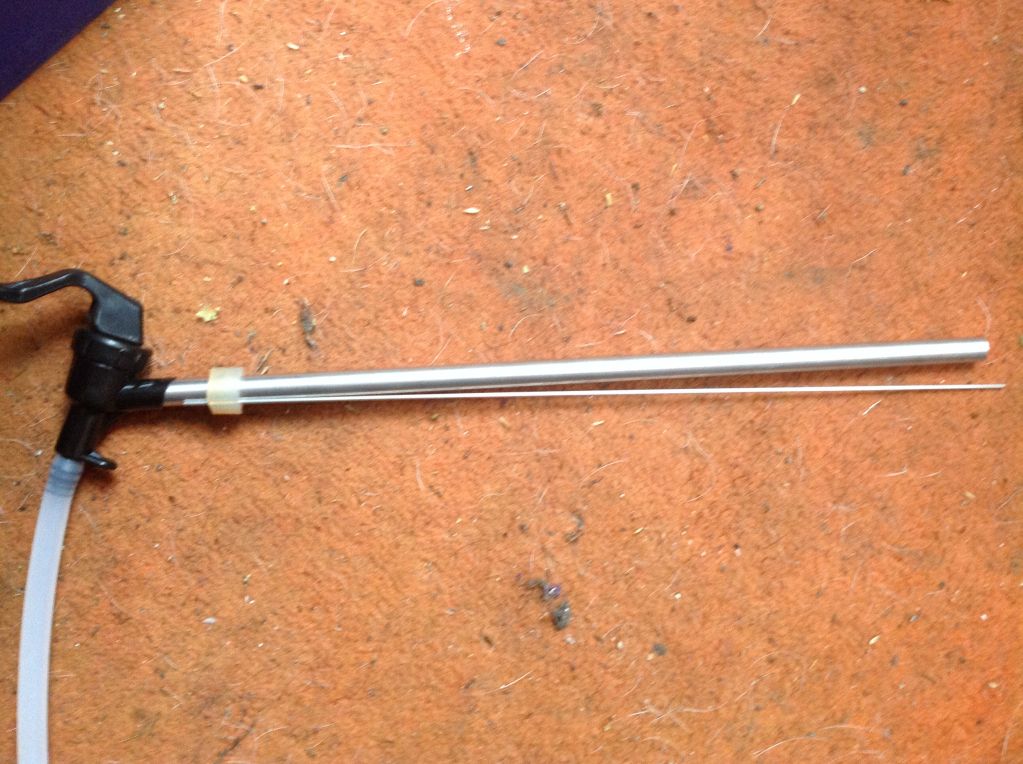

incorporating a stopper


so using a bottling stick valve







so looking at a better way off a trigger for the gas????

[NobbyIPA]

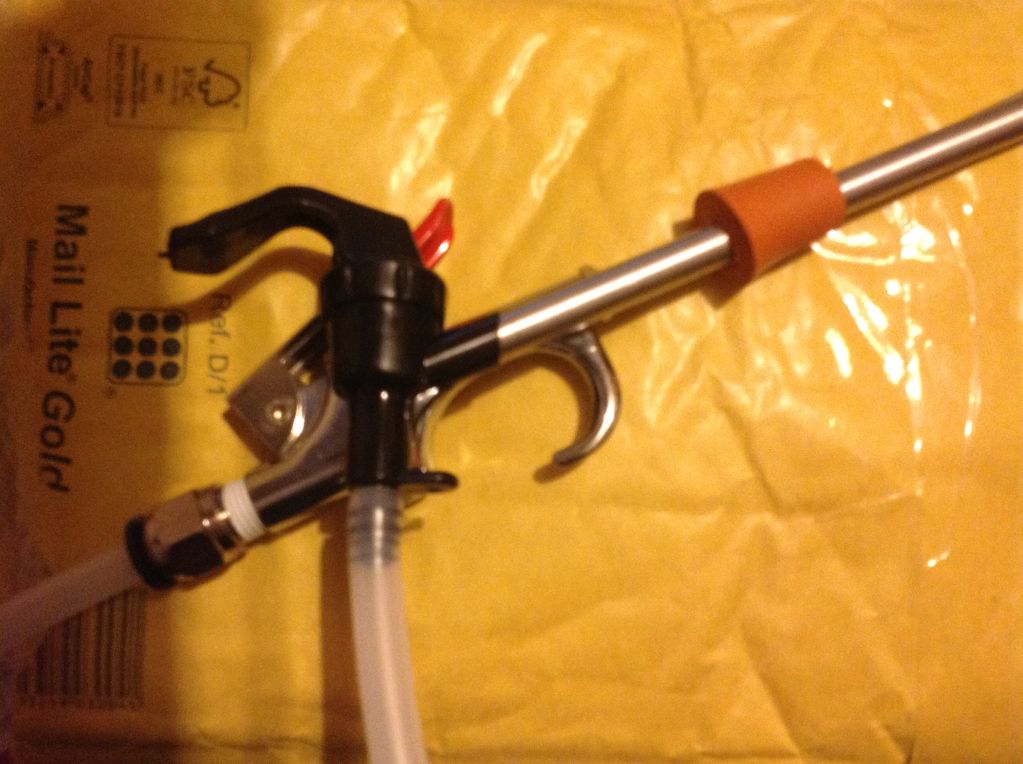

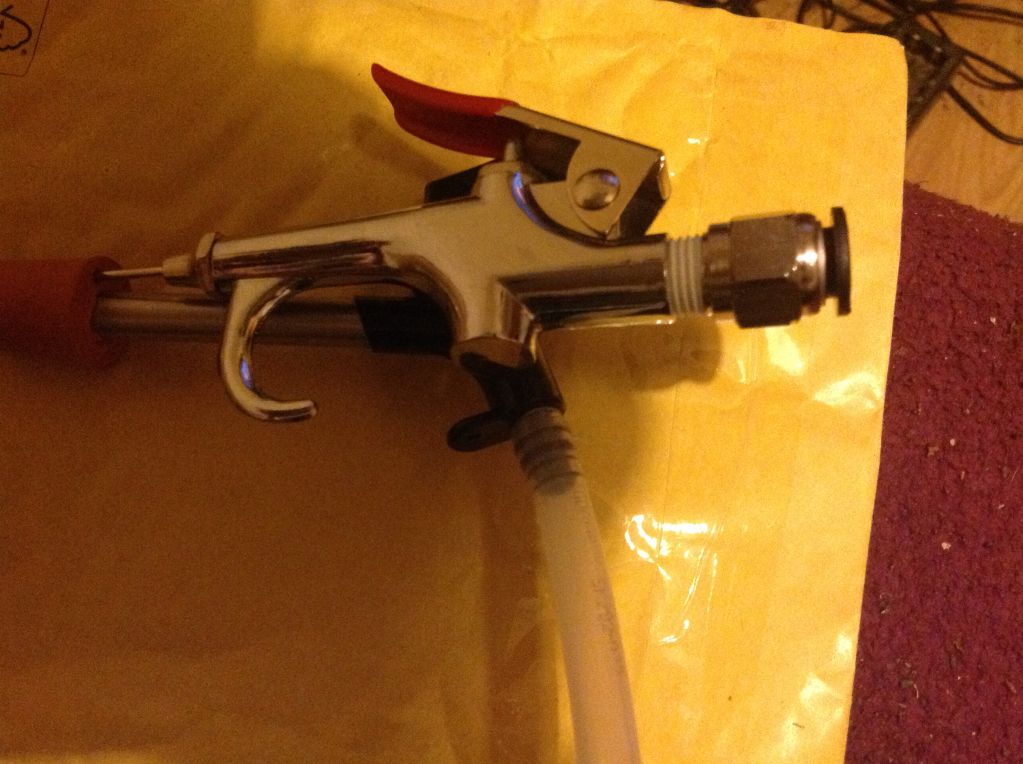

so trigger for gas sorted
air duster attachment for air line with ss quick connect





just waiting on a check valve arriving so as to purge the air first then to release pressure when filling

[NobbyIPA]

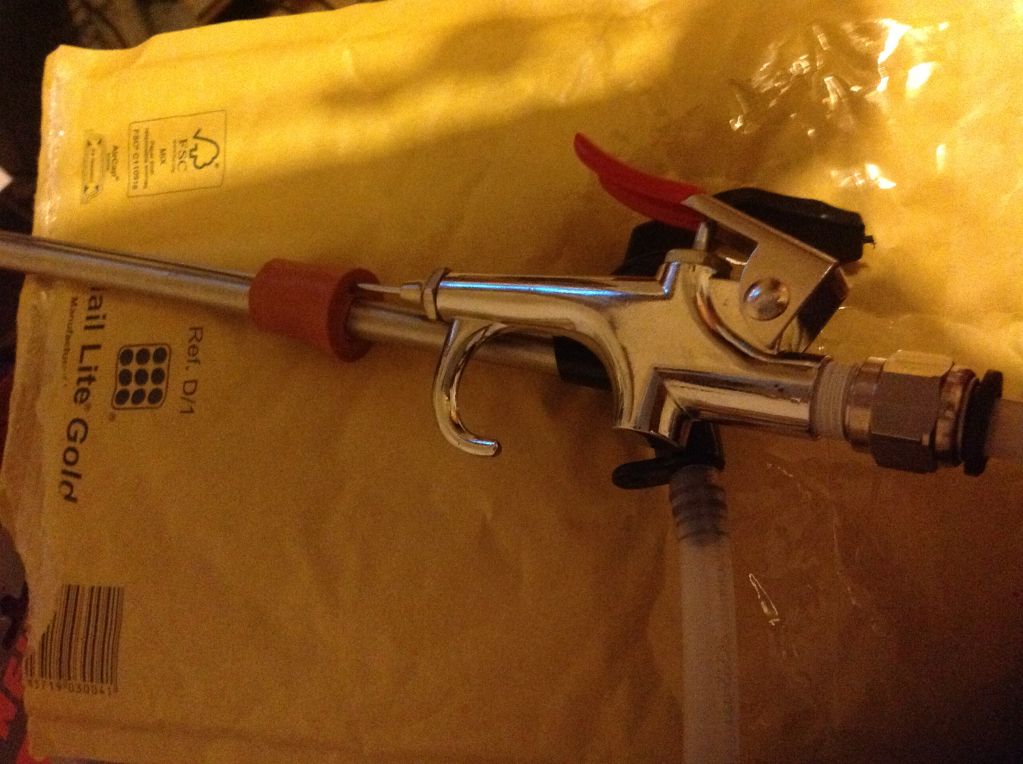

looks like it will be test time very soon me check valve has arrived

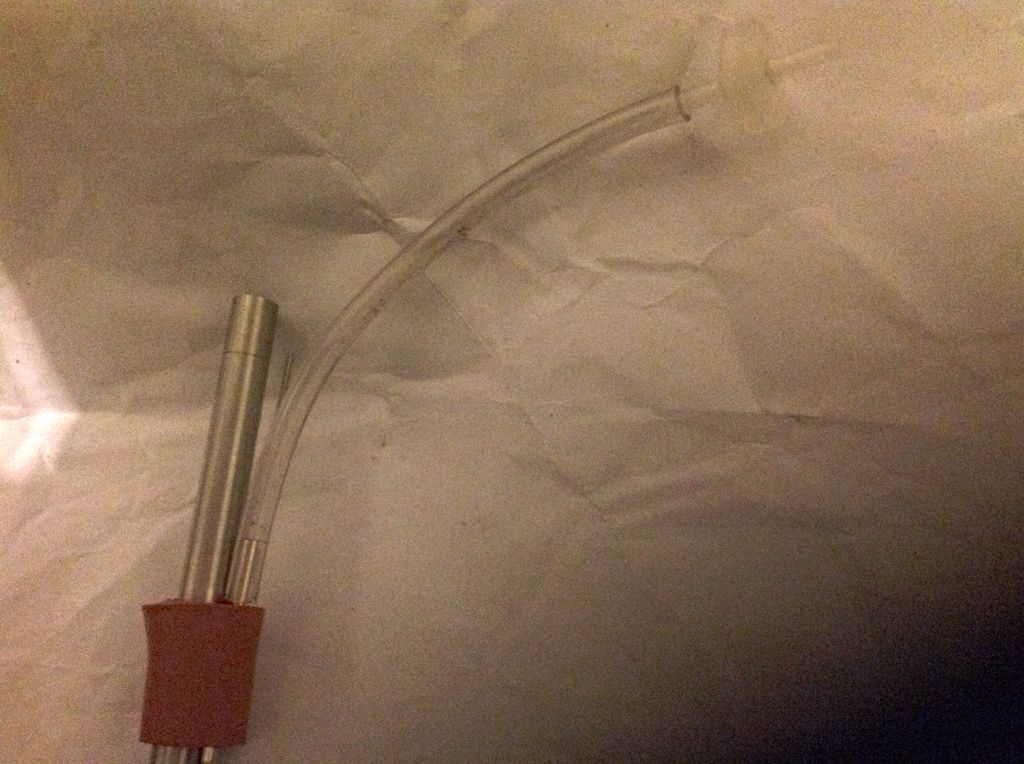

extra piece of ss tube inserted

check valve added

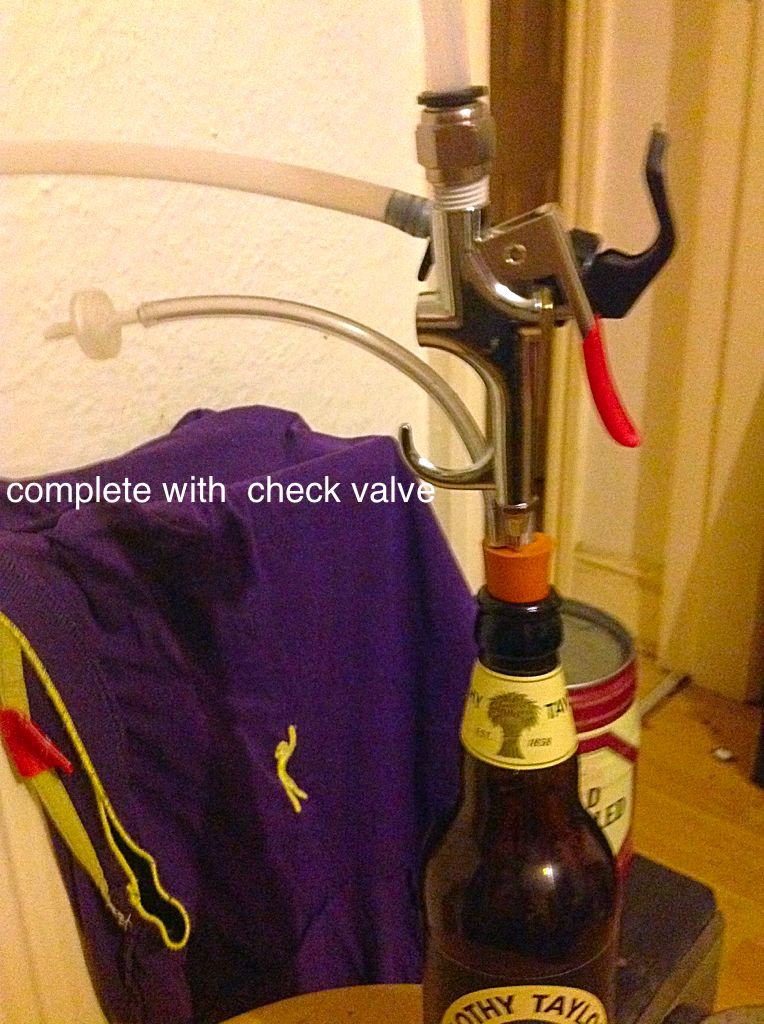

complete just needs testing out

all one handed operation by the feels of it
