My New Single Vessel Brewery

Post by floydmeddler » Sat Dec 16, 2017 6:14 pm

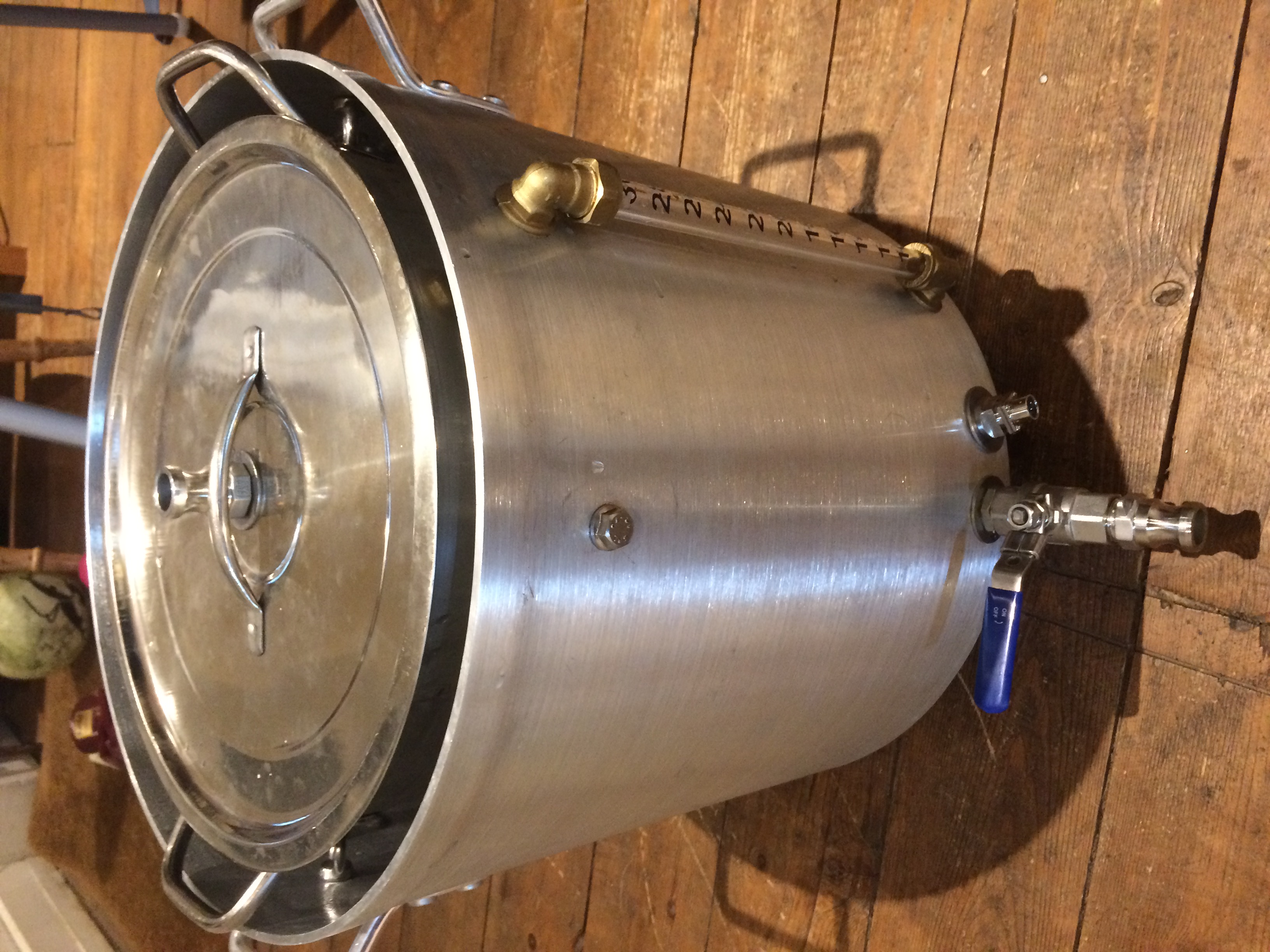

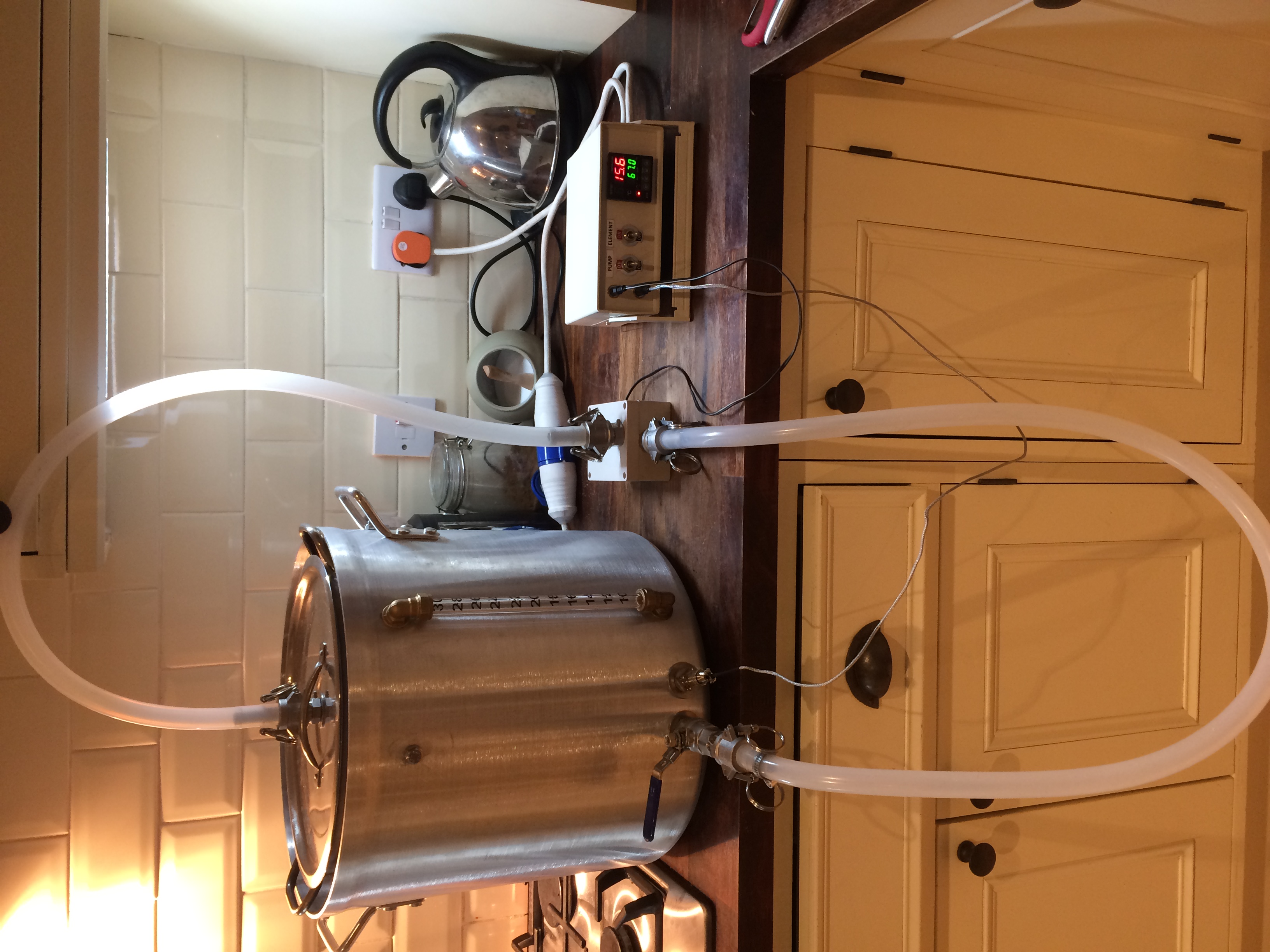

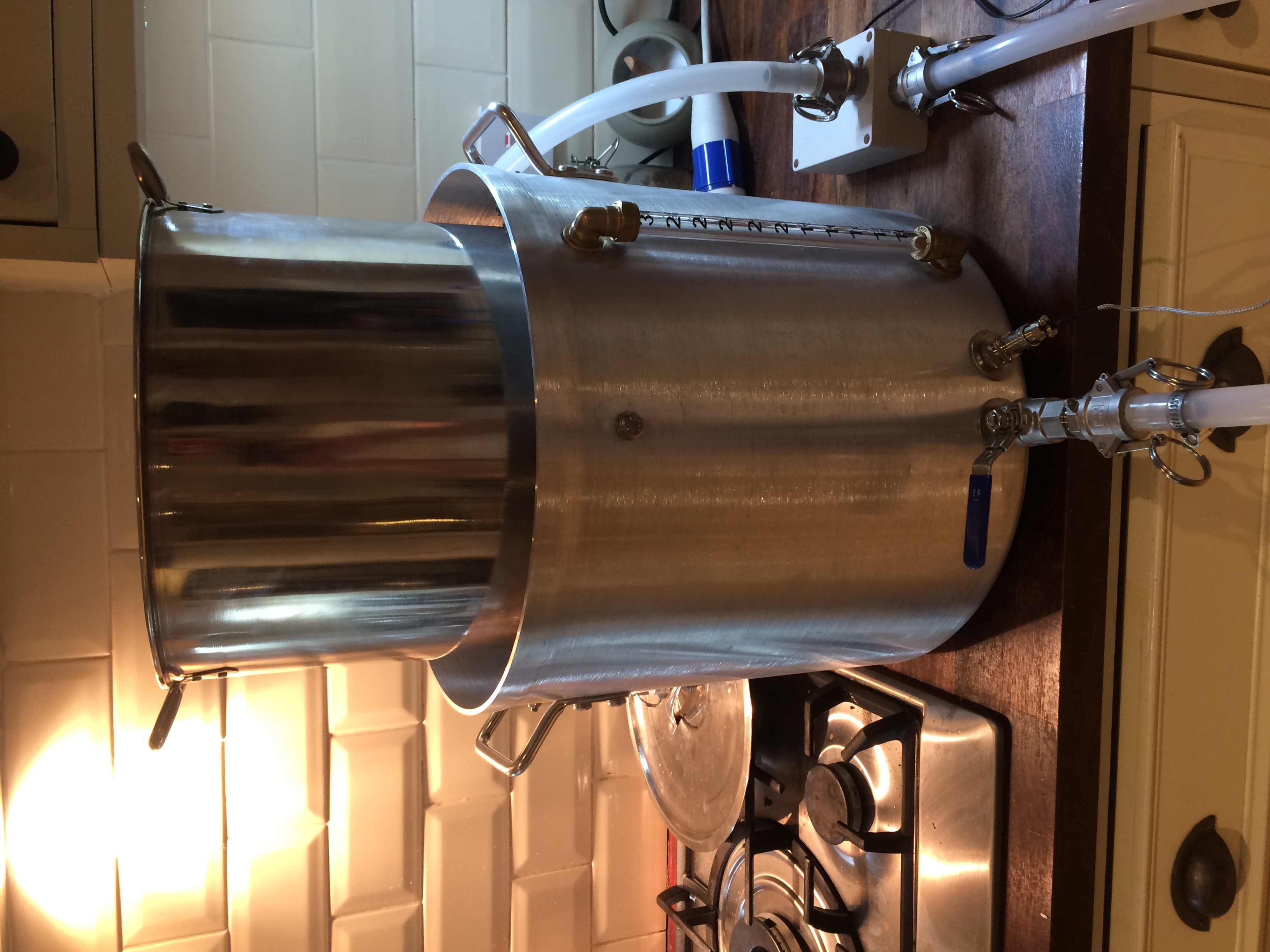

I set myself a goal: To build a single vessel brewery that sill fill a corny. Here she is:

Last edited by floydmeddler on Sat Dec 16, 2017 6:23 pm, edited 2 times in total.

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sat Dec 16, 2017 6:21 pm

More pics

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sat Dec 16, 2017 6:23 pm

Sorry for sideways files. Click them and they should turn 'upright'. Does so in Chrome anyway.

I brewed on her today and it went perfectly. Too perfectly actually... I found it all a bit disconcerting!
So happy with it. Love how it looks and how it performs. 72% efficiency. Happy days!!

Total cost was around £300. Not cheap - however. I wanted to treat myself. I deserve it after 10 years of making beer!!

Can't wait to brew again.

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sat Dec 16, 2017 6:29 pm

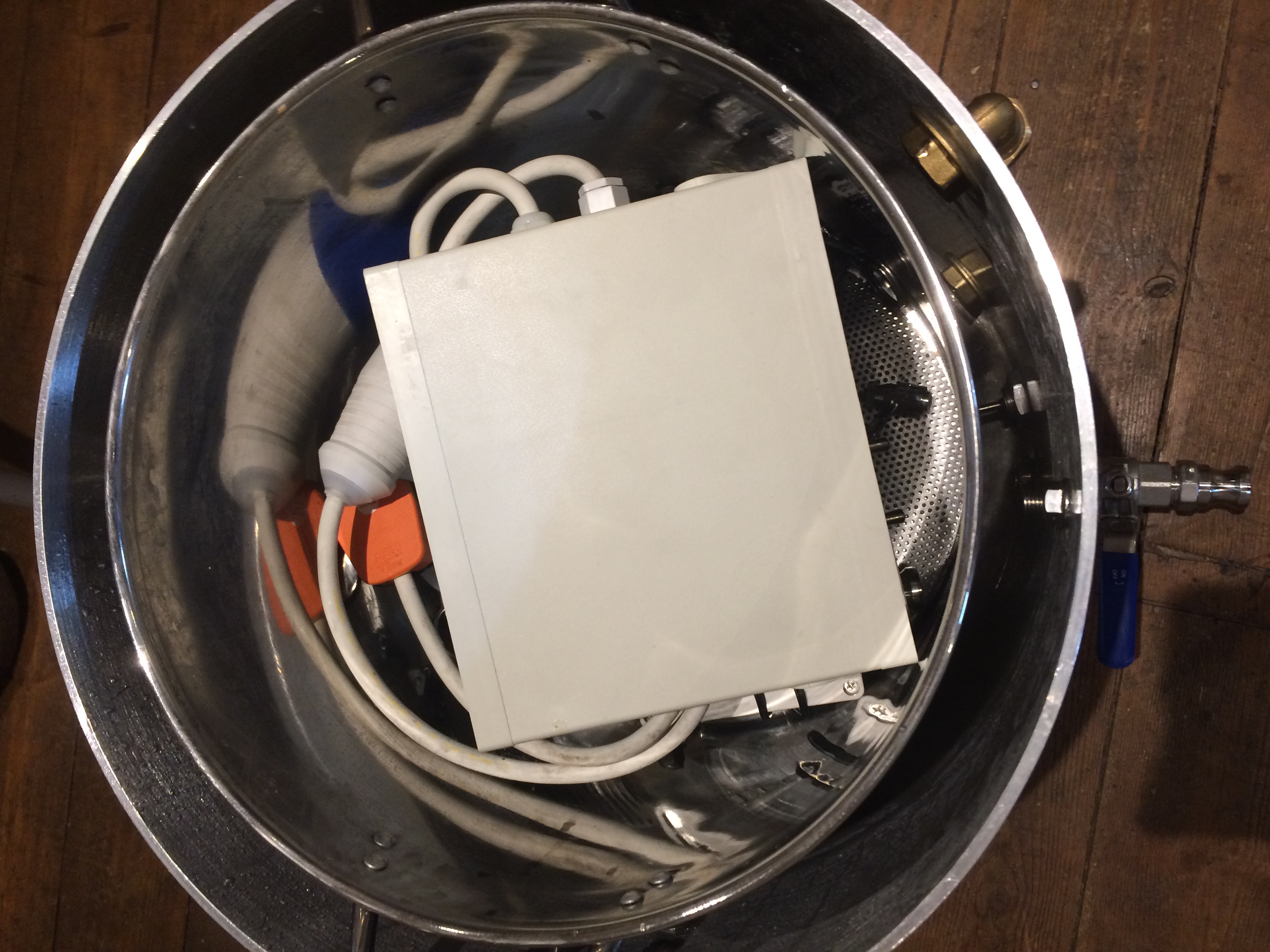

All packs away beautifully.

jaroporter
Drunk as a Skunk
Posts: 992
Joined: Sat Jul 21, 2012 11:12 pm
Location: Garden of England

Re: My New Single Vessel Brewery

Post by jaroporter » Sat Dec 16, 2017 7:36 pm

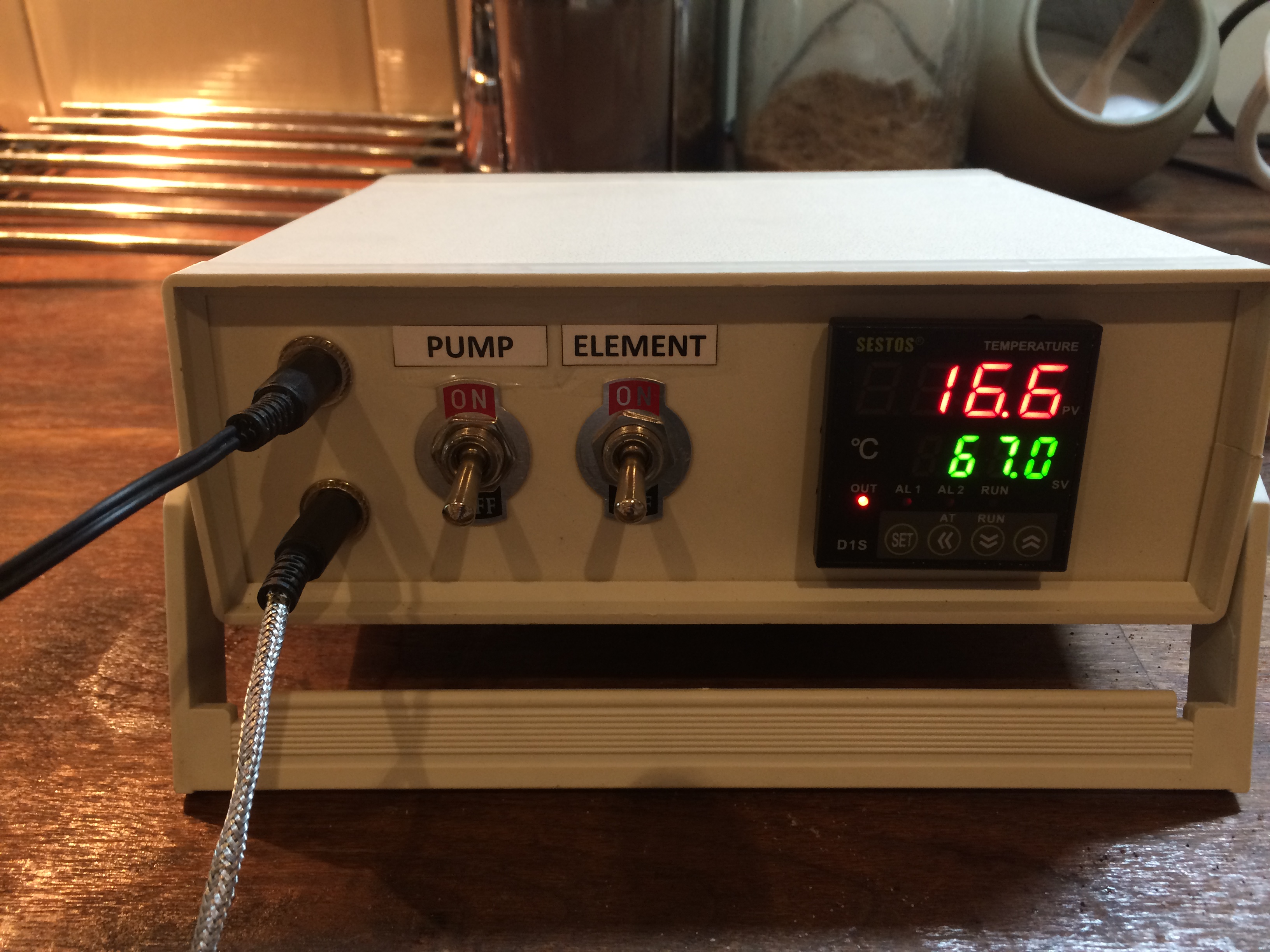

nice work dude. looks nice n compact. like the look of the controller - is that a repurposed bench heater or something?!
dazzled, doused in gin..

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sat Dec 16, 2017 7:46 pm

Cheers man. No - It's this project box https://www.ebay.co.uk/itm/200x175x70mm ... 2749.l2649

FermentedCulture

Re: My New Single Vessel Brewery

Post by FermentedCulture » Sun Dec 17, 2017 6:10 am

Very cool.

User avatar
donchiquon
Hollow Legs
Posts: 345
Joined: Mon Feb 01, 2016 9:46 pm
Location: Chamonix-Mont-Blanc, France

Re: My New Single Vessel Brewery

Post by donchiquon » Sun Dec 17, 2017 9:29 am

That’s a great build - congratulations


Sent from my iPhone using Tapatalk
Ian

User avatar
LeeH
Under the Table
Posts: 1261
Joined: Wed Jan 11, 2012 9:42 pm
Location: North Lincs
Contact:

Re: My New Single Vessel Brewery

Post by LeeH » Sun Dec 17, 2017 11:25 am

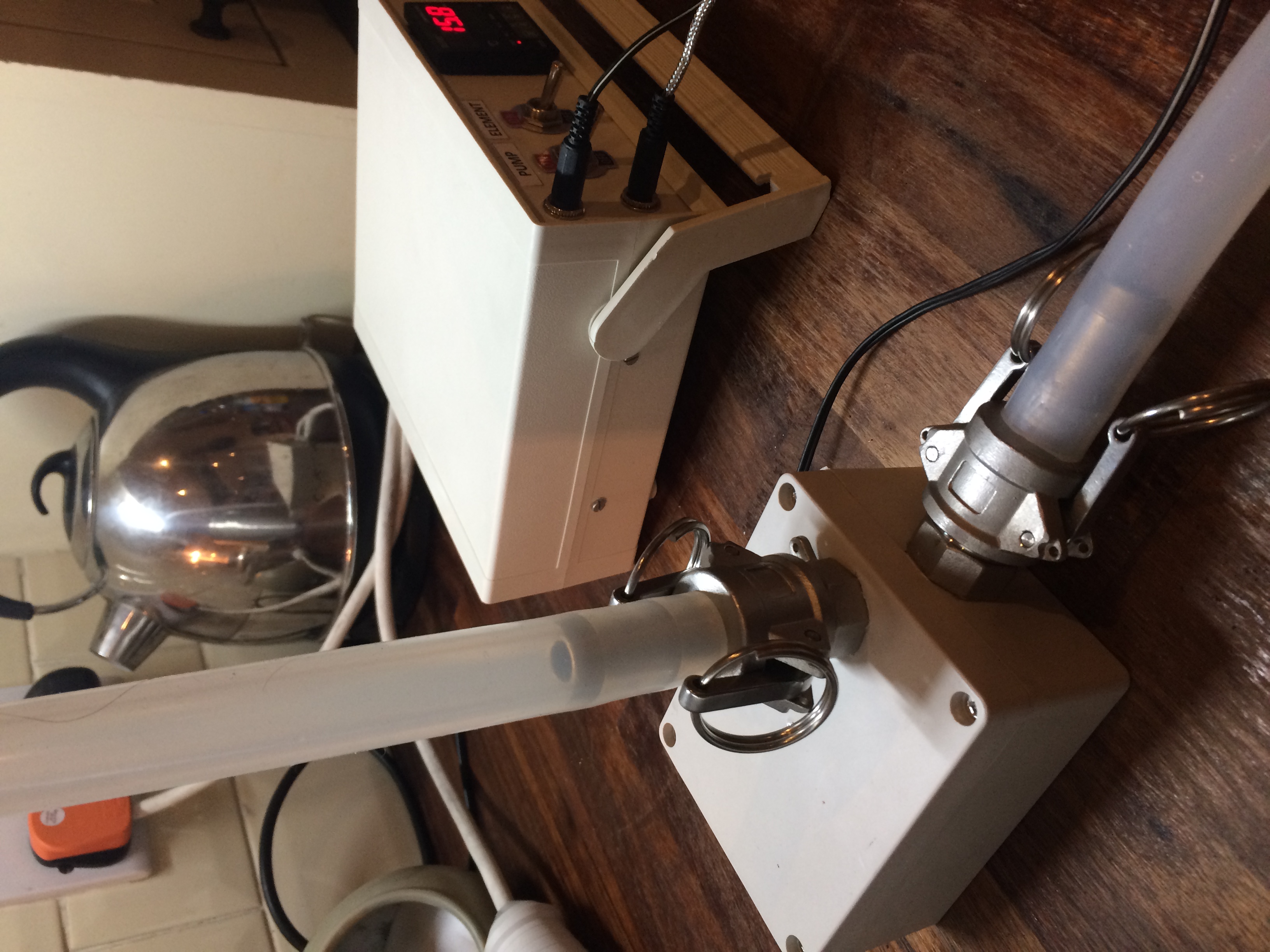

I like how you have put the pump in that box. Tidy job.


Sent from my iPhone using Tapatalk Pro
To monitor my latest fermentation click here Funktown
To view my new AG build click here
Keg 1: Mangrove Jacks Berliner Sour dry hopped with 100g amarillo.
Keg 2: Coppers Stout with 1KG extra dark DME served on nitrogen.
Keg 3: Empty
Keg 4: Empty

chefgage
Hollow Legs
Posts: 414
Joined: Mon Mar 16, 2015 10:37 am

Re: My New Single Vessel Brewery

Post by chefgage » Sun Dec 17, 2017 12:12 pm

Looks very good that :D . I have a three vessel system but was looking to build a single vessel system. Theres something about building your own system thats more satisfying than just buying a ready made one.

But i must admit i went the buy a grainfather route.

User avatar
MashTim
Piss Artist
Posts: 110
Joined: Wed May 29, 2013 9:44 pm

Re: My New Single Vessel Brewery

Post by MashTim » Sun Dec 17, 2017 1:28 pm

Nice and neat. When viewed on a phone using Tapatalk the photos are oriented correctly, but in the forum webpages they are not!

cerbera84
Piss Artist
Posts: 271
Joined: Thu May 01, 2014 8:06 pm
Location: Wolverhampton

Re: My New Single Vessel Brewery

Post by cerbera84 » Sun Dec 17, 2017 3:10 pm

good work! i have a few questions!

a) regarding the malt pipe, what holes/slits are in the base?
b) how are you avoiding an overflow?
c) is the lid of the malt pipe fixed to the malt pipe during recirc?
d) do you stir during the mash?
e) are you sparging?

Cheers
Ben
Planning: BrewEasy system build; possibly a Wychwood Hobgoblin Gold clone
Fermenting: Simcoe SMASH
Drinking: Cascade Centennial Pale

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sun Dec 17, 2017 7:07 pm

Thanks all.

Cerbera,

a) regarding the malt pipe, what holes/slits are in the base?

There is no malt pipe. Currently there is one 6cm hole in the centre and a false bottom sits over that. However, I'm planning on punching another two 6cm holes as there seemed to be bit of a threat of an overflow yesterday.

b) how are you avoiding an overflow?

I had to throttle back on the flow to prevent an overflow from happening. Hopefully two more holes will allow for faster drainage drainage.

c) is the lid of the malt pipe fixed to the malt pipe during recirc?

On the lid there is a camlock connect. The wort recirculates through that. Was crystal clear yesterday.
d) do you stir during the mash?

Noooooooo. I want super clear wort.

e) are you sparging?

No. This is a no sparge brewery. I could if I wanted to but doubt I ever will due to time. I'm over the moon with 72% efficiency so all seems to be working out nicely.

Hope that answers your questions.
Floyd

User avatar
floydmeddler
Falling off the Barstool
Posts: 3940
Joined: Mon Feb 16, 2009 10:37 pm
Location: Irish man living in Brighton

Re: My New Single Vessel Brewery

Post by floydmeddler » Sun Dec 17, 2017 7:09 pm

Damn. I'm now thinking that I have a bit of a design flaw. The grain became quite compact near the end of the mash. Is this down to not having a malt pipe? Will my plan to make two more holes make a difference with overflow/grain compacting?

Any advice welcome!

Damn... knew this was too good to be true...

cerbera84
Piss Artist
Posts: 271
Joined: Thu May 01, 2014 8:06 pm
Location: Wolverhampton

Re: My New Single Vessel Brewery

Post by cerbera84 » Sun Dec 17, 2017 10:04 pm

Hi Floyd,

I wouldn't panic just yet! What I refer to as the malt pipe is purely your inner pot. I was keen to understand how yours worked. My thoughts are that if you are recirculating with the lid on, it seems to me that it would be quite difficult to spot an overflow issue before it was too late? My MaltMother build used a central overflow pipe (like a Grainfather) to avoid this issue - mine works well in this area, but I myself am planning a redesign on this part to build it in stainless instead of copper and brass. I'm also weighing up simple recirculation (hole in lid) against an even distribution of recirc wort (eg. shower head type arrangement).

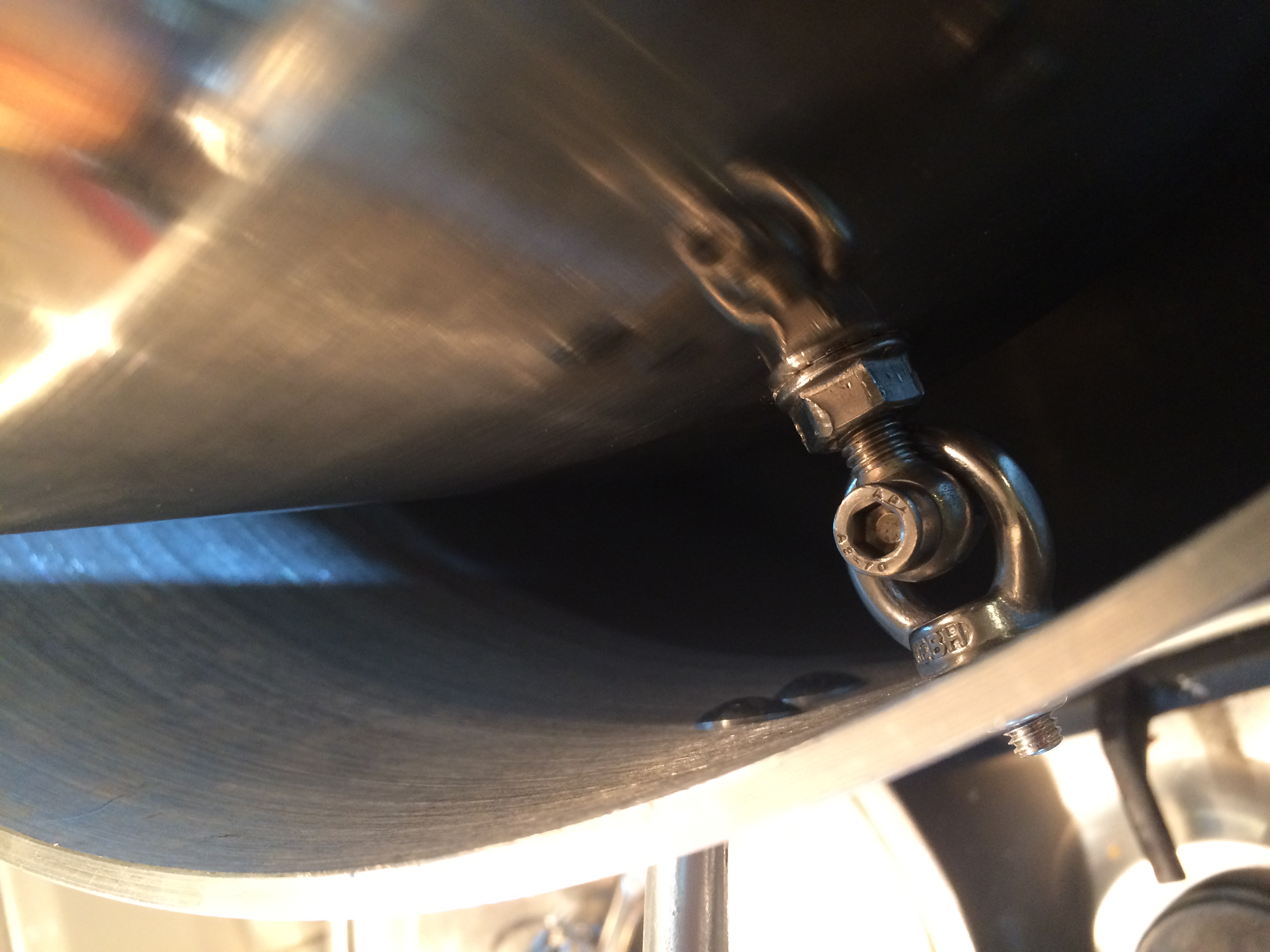

I like your use of eyelets to raise the inner pot up. I currently use a stainless trivet but its far from ideal. Your efficiency of 72% is impressive, I am hitting about 60-65% with a 5 litre sparge.

Don't give up - I find my build is developing as time goes on.

Cheers,

Ben
Planning: BrewEasy system build; possibly a Wychwood Hobgoblin Gold clone
Fermenting: Simcoe SMASH
Drinking: Cascade Centennial Pale
