little flow meter + display

Post by chris2012 » Mon Apr 08, 2019 8:44 pm

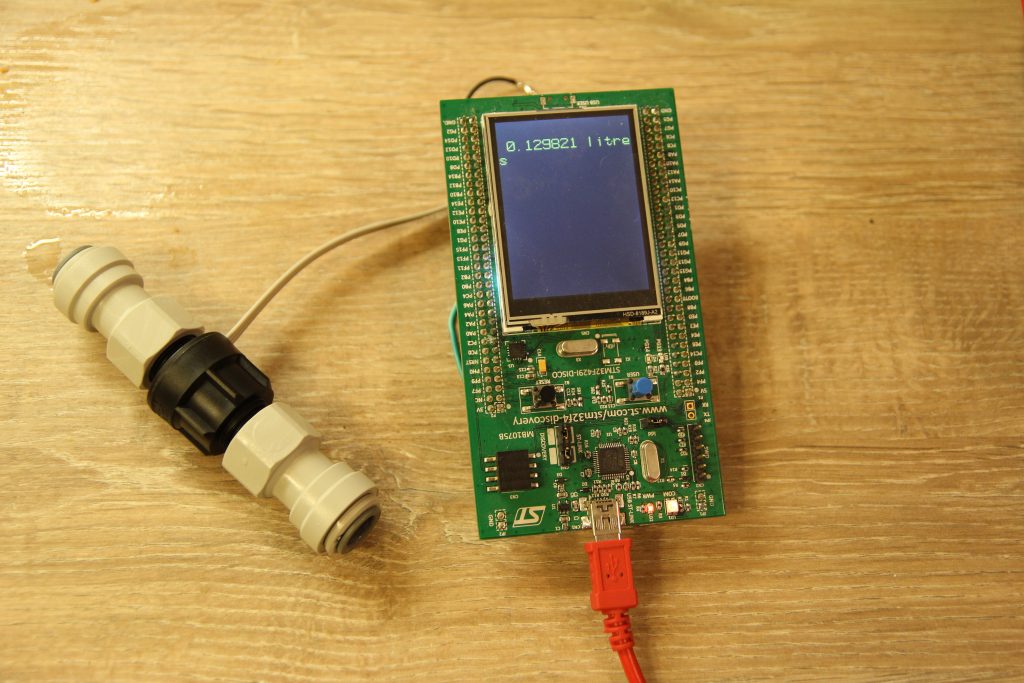

Just knocked up this little display thing for my Swissflow flow meter :) seems to work pretty accurately with water
from my rudimentary test. (Just using a little pouring jug).

EalingDrop
Sober
Posts: 8
Joined: Thu Feb 05, 2015 12:49 pm

Re: little flow meter + display

Post by EalingDrop » Tue Apr 09, 2019 3:58 am

subscribed!

Parts list?

Sent from my SM-G930F using Tapatalk


chris2012
Under the Table
Posts: 1100
Joined: Sat Jun 23, 2012 10:13 pm

Re: little flow meter + display

Post by chris2012 » Tue Apr 09, 2019 10:57 am

Heh.

I used https://uk.farnell.com/stmicroelectroni ... dp/2355377 the original board, however there is now a new revision:

https://uk.farnell.com/stmicroelectroni ... dp/2506924

It looks to me that they should be compatible, from comparing some of the tech specs.

For the flow meter I used:

http://www.swissflow.com/sf800.html

I'll put the source on github, just need to tidy it up a bit.

I'm planning on using it to measure water from the HLT to mash tun primarily. And possibly from mash tun to boiler. (It does mention about ideally having a 20 micron filter though)

EalingDrop
Sober
Posts: 8
Joined: Thu Feb 05, 2015 12:49 pm

Re: little flow meter + display

Post by EalingDrop » Tue Apr 09, 2019 12:19 pm

cheers!

Sent from my SM-G930F using Tapatalk


User avatar
themadhippy
Even further under the Table
Posts: 2850
Joined: Tue Dec 08, 2009 12:53 am
Location: playing hooky

Re: little flow meter + display

Post by themadhippy » Tue Apr 09, 2019 1:39 pm

If your a cheap skate you could knock up the same with a 2 x 16 lcd display and an arduino clone for about a 1/4 of the price of the development board
Warning: The Dutch Coffeeshops products may contain drugs. Drinks containing caffeine should be used with care and moderation

chris2012
Under the Table
Posts: 1100
Joined: Sat Jun 23, 2012 10:13 pm

Re: little flow meter + display

Post by chris2012 » Tue Apr 09, 2019 1:41 pm

Mm that's a good point. I just happen to have some of these kicking about.
